$515.00
Category:
Skyaxis Wind-Driven Ventilators
500mm Curved Vane Ventilator
0 Reviews
5/5

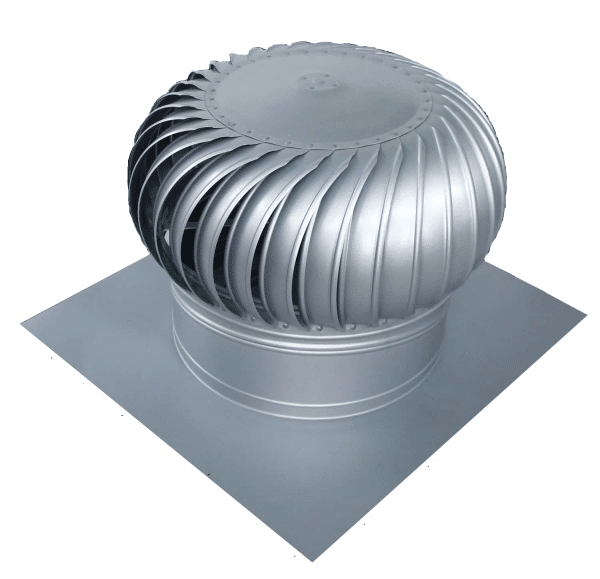

The Skyaxis 500mm Curved Vane Ventilator is one of the best commercial roof ventilation systems available in New Zealand. It allows for a maximum roof pitch of 22 degrees thanks to its variable pitch throat. Its size and effectiveness make it a versatile option suitable for residential roof ventilation systems, commercial roof ventilation systems, and industrial roof ventilation systems. Includes 750mm x 800mm base flashing.
Skyaxis 500mm Curved Vane Ventilators are built for durability using high-quality, lightweight aluminum alloy and are coated in a revolutionary Fluorine Carbon Polyester.
Roofquip is a 100% New Zealand owned and operated business. We offer our customers nationwide shipping and delivery when they purchase one of our products. Shipping and delivery costs to most NZ metro areas is included in the listed price. Contact us today to learn more.
500mm x 525mm x 635mm; 4,1kg
Base Flashing 750mm x 800mm
Once it is installed and working, the 500mm Curved Vane Ventilator requires little to no maintenance or attention. It will continue to work on its own without you needing to do a thing. If your 500mm Curved Vane Ventilator isn’t working as it should, get in touch with the Roofquip team, and we can assist.
Description
Size Recommendations
Installation Details
Resources
Description
The 500mm Curved Vane Ventilator does not rely on electricity, it is a completely wind-driven roof ventilator. Spinning in the wind, the ventilator draws out hot, stale air, odours, gases, fumes, and condensation and allows fresh, cool air to enter the building. For a cool, comfortable, and healthy environment, the 500mm Curved Vane Ventilator is an excellent choice for spinning roof ventilation.
PLEASE NOTE: Powdercoating to any roofing colour is available for an extra cost if required. Please Contact Us or send us an email.
Size Recommendations
|
Model |
A Throat Diameter |
B Overall Height |
C Overall Diameter |
D Throat height |
E & F Flashing Size |
Weight |
|
200mm CV |
200mm |
370mm |
320mm |
160mm |
No Flashing |
1.1kg |
|
300mm CV |
300mm |
450mm |
430mm |
190mm |
400mm x 450mm |
2kg |
|
500mm CV |
500mm |
525mm |
635mm |
190mm |
750mm x 800mm |
4.1kg |
|
600mm CV |
600mm |
625mm |
750mm |
215mm |
800mm x 850mm |
6.5kg |
Installation Details
To assemble and install the 500mm Curved Vane Ventilator, simply follow the instructions in the Skyaxis Installation Instruction Guide. The installation guide can be found with the resources that can be downloaded below. If you find any difficulties or are having any trouble, reach out to our team of experts for assistance.
Skyaxis Installation Instruction
Resources
