$258.00

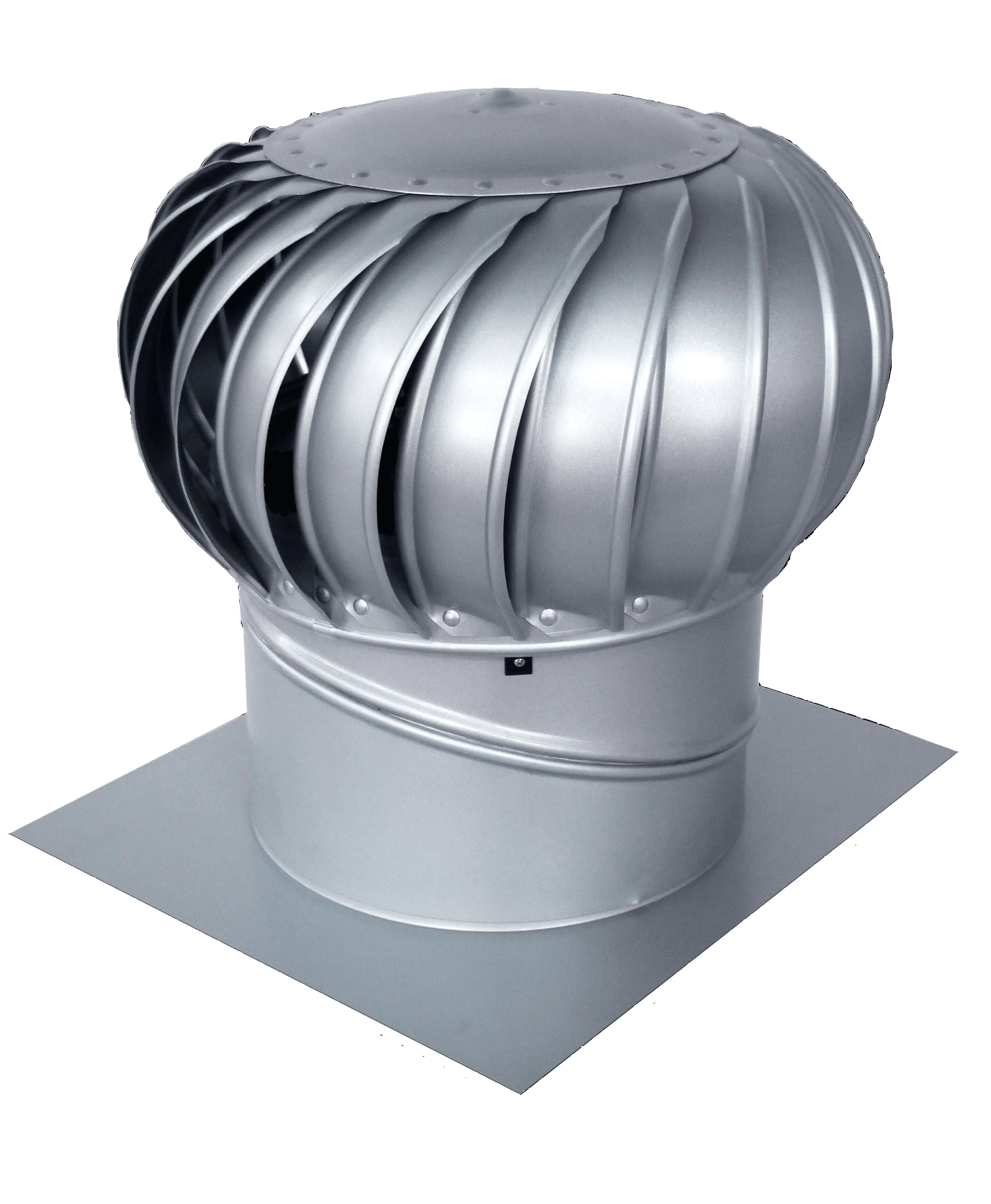

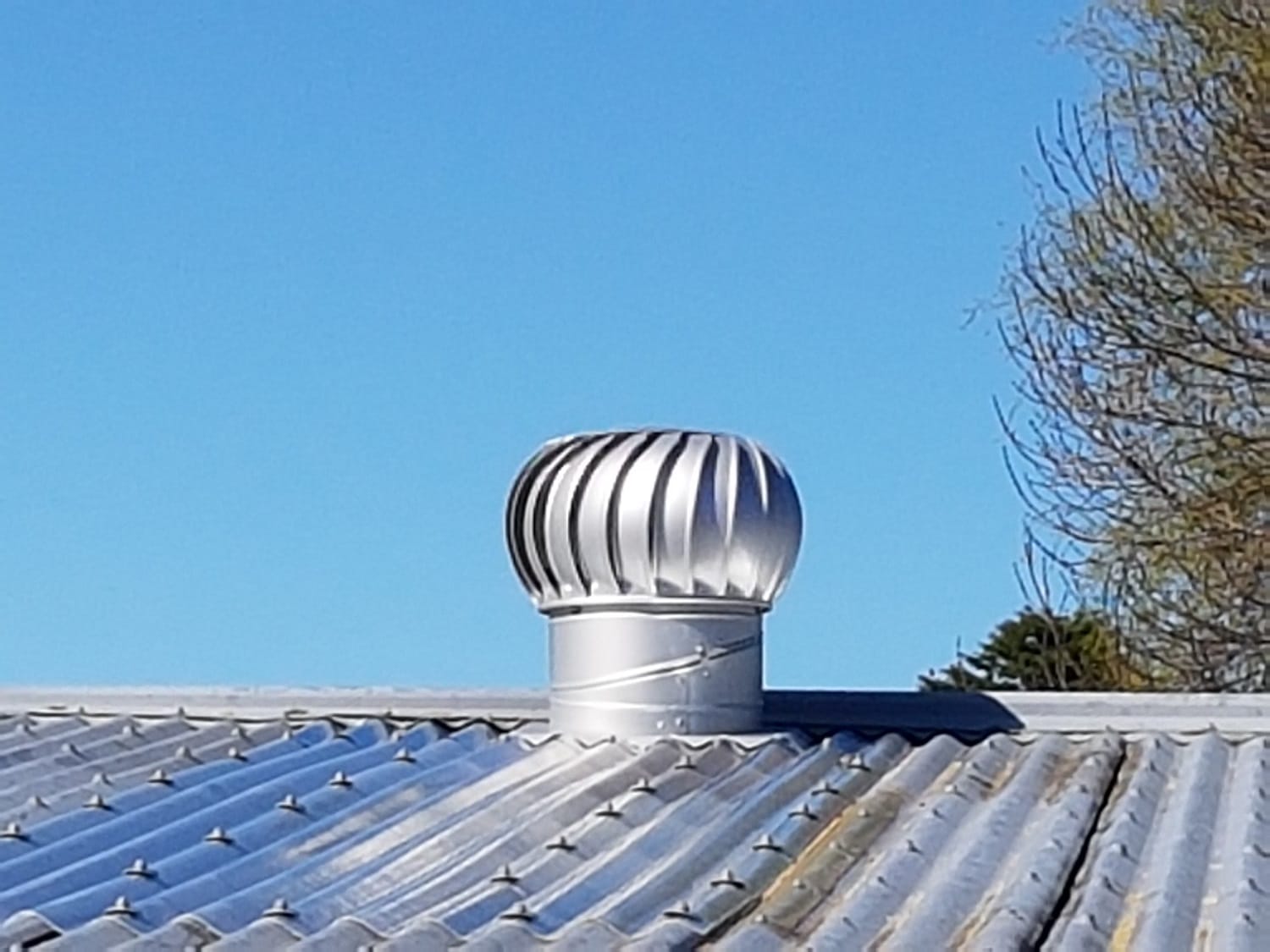

The 300mm Curved Vane Ventilator is a spinning roof ventilation system. It turns in the wind and extracts hot, stale air along with fumes, gases, and odours and allows cool, fresh air to take its place. It requires no electricity to run, making it an eco-friendly, low-cost air ventilation system.
PLEASE NOTE: Powdercoating to any roofing colour is available for an extra cost if required. Please Contact Us or send us an email.
Skyaxis 300mm Curved Vane Ventilators are durably built with an ultra-lightweight aluminium alloy with a Fluorine Carbon Polyester Coating.
Roofquip is a 100% New Zealand owned and operated business. We offer our customers nationwide shipping and delivery when they purchase one of our products. Shipping and delivery costs to most NZ metro areas is included in the listed price. Contact us today to learn more.
300mm x 450mm x 430mm; 2kg
Base Flashing 450mm x 400mm
Once installed, the 300mm Curved Vane Ventilator requires little to no attention. With no required maintenance, you can simply install the unit and forget about it. If the 300mm Curved Vane Ventilator is not working correctly or you have any questions, don’t hesitate to get in touch with the Roofquip team for assistance.
The 300mm Curved Vane Ventilator is a spinning roof ventilation system. It turns in the wind and extracts hot, stale air along with fumes, gases, and odours and allows cool, fresh air to take its place. It requires no electricity to run, making it an eco-friendly, low-cost air ventilation system.
PLEASE NOTE: Powdercoating to any roofing colour is available for an extra cost if required. Please Contact Us or send us an email.
| Model | A Throat Diameter |
B Overall Height |
C Overall Diameter |
D Throat height |
E & F Flashing Size |
Weight |
| 200mm CV | 200mm | 370mm | 320mm | 160mm | No Flashing | 1.1kg |
| 300mm CV | 300mm | 450mm | 430mm | 190mm | 400mm x 450mm | 2kg |
| 500mm CV | 500mm | 525mm | 635mm | 190mm | 750mm x 800mm | 4.1kg |
| 600mm CV | 600mm | 625mm | 750mm | 215mm | 800mm x 850mm | 6.5kg |
Assembling and installing the 300mm Curved Vane Ventilator couldn’t be simpler – just follow the assembly and installation instructions listed in the Skyaxis Installation Instruction guide. The guide is available, along with other downloadable resources, below. If you are having any trouble during installation, contact the Roofquip team for help.
