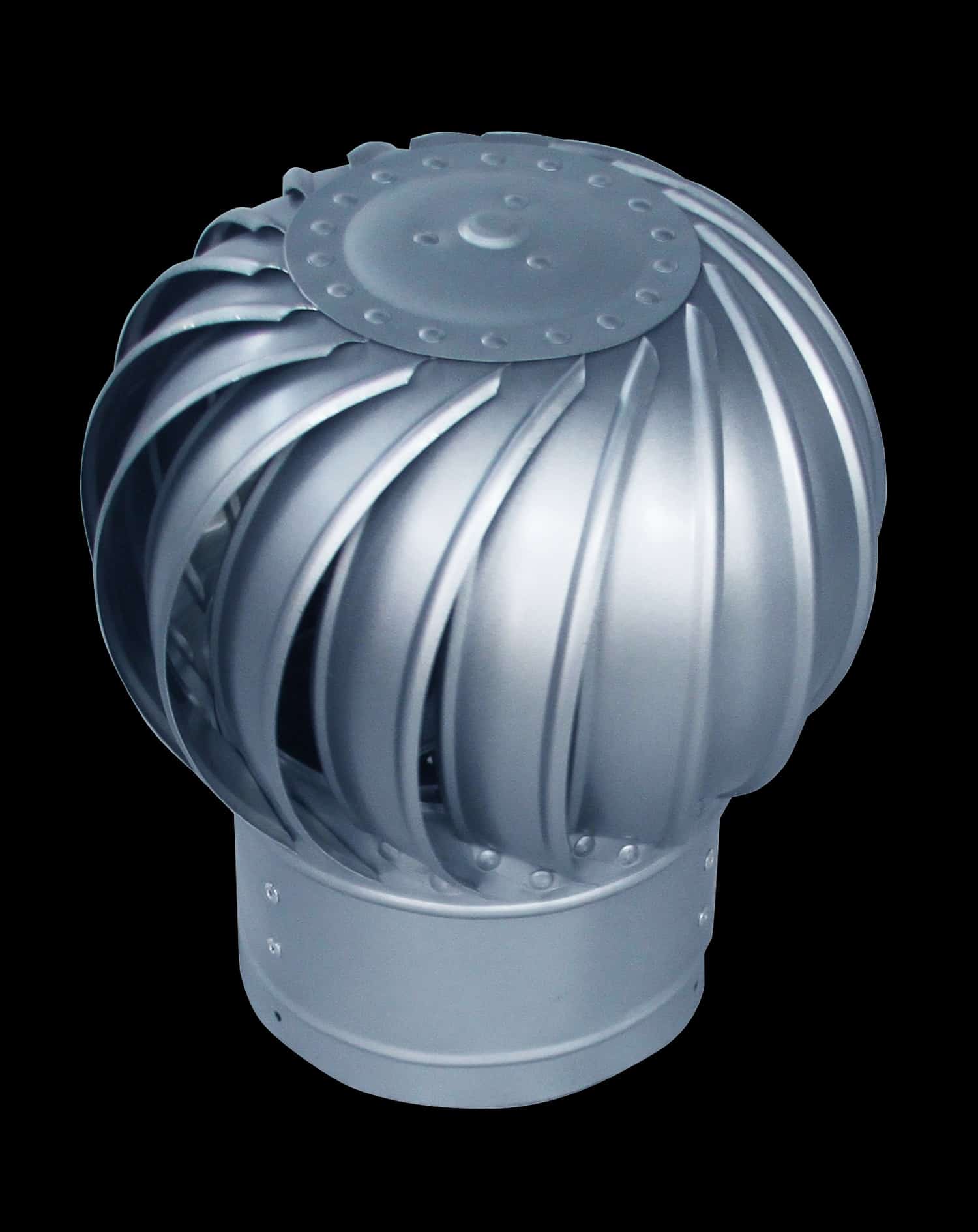

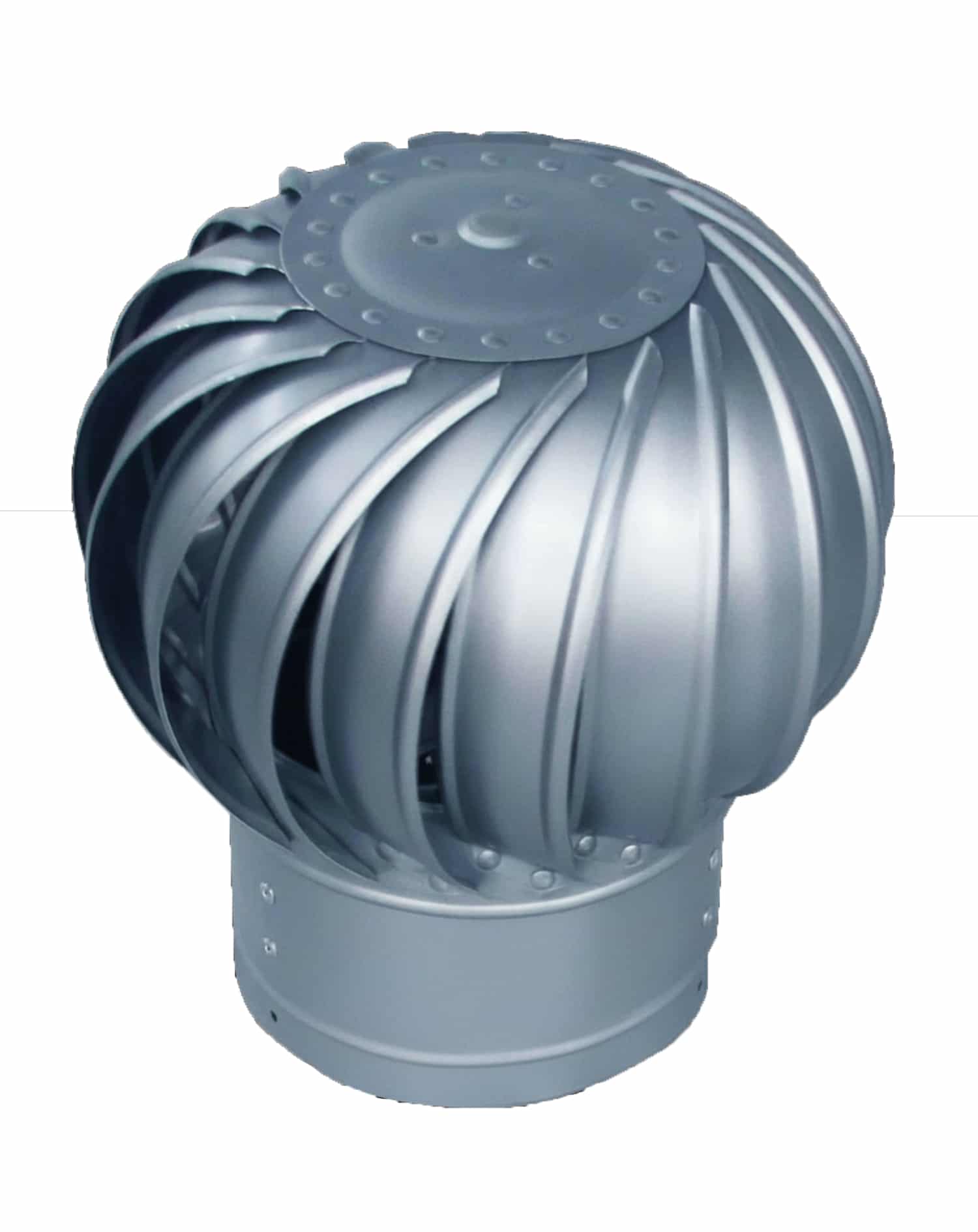

The 200mm Curved Vane Ventilator is a wind-driven roof ventilator. The spinning motion draws hot air, gases, fumes, condensation, and stale air out of your building and allows fresh, cool air to take its place. As it does not rely on electricity, it is a low-cost, eco-friendly commercial air ventilation system.
Model |
A Throat Diameter |
B Overall Height |
C Overall Diameter |
D Throat height |
E & F Flashing Size |
Weight |
200mm CV |
200mm |
370mm |
320mm |
160mm |
No Flashing |
1.1kg |
300mm CV |
300mm |
450mm |
430mm |
190mm |
400mm x 450mm |
2kg |
500mm CV |
500mm |
525mm |
635mm |
190mm |
750mm x 800mm |
4.1kg |
600mm CV |
600mm |
625mm |
750mm |
215mm |
800mm x 850mm |
6.5kg |
